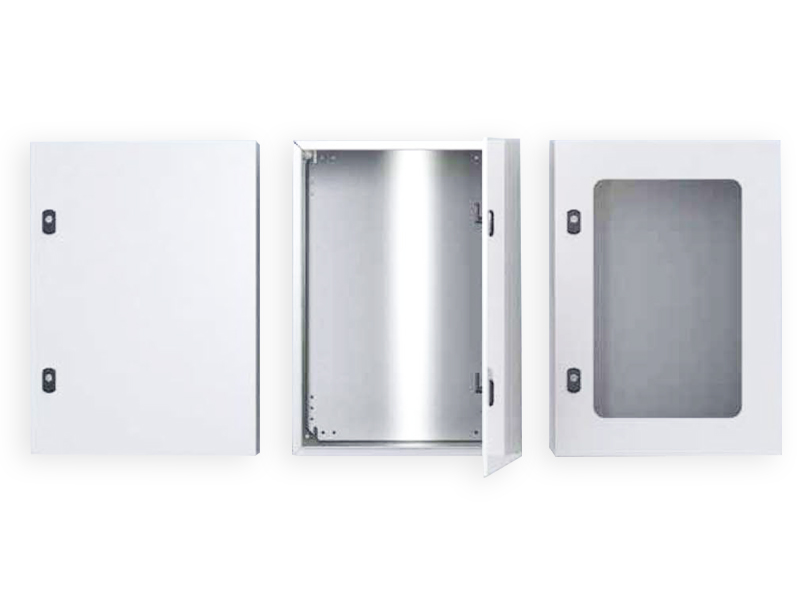

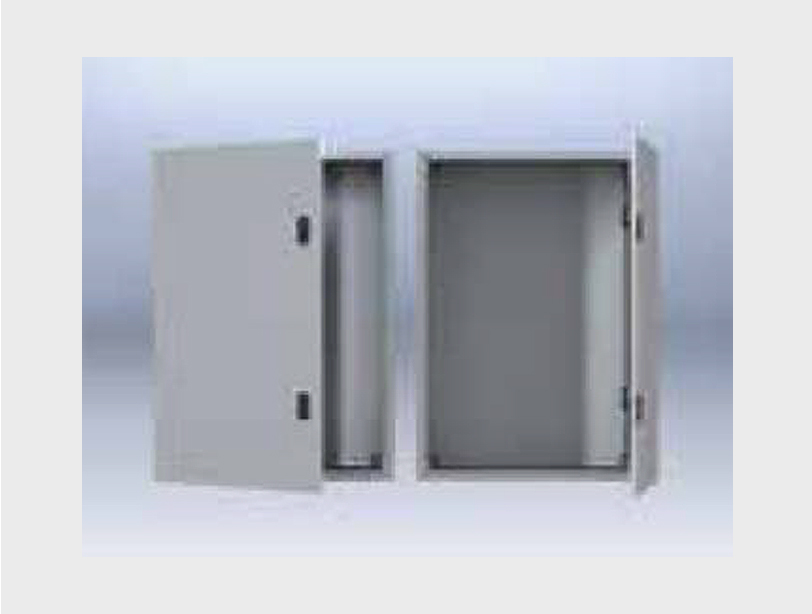

Wall Mounted Metal Enclosure

Body
  • 1.5 mm Thickness Electro-Galvanized Steel
Door
  • 1.5 mm Thickness Electro-Galvanized Steel
  • Surface mounted with 120o opening
  • Concealed removable hinges as door setting at left or right hand opening
  • Sealing by polyurethane gasket
Lock
  • Special custom design lock with IP rating
Mounting Plate
  • 2.0 mm Galvanized Steel
  • Various depth of mounting plate can be adjusted
Grand Plate
  • 1.5 mm Electro-Galvanized Steel
Protection
  • QAV & TUV certified, IP66 rating with rain hood ARF is installed
Finishing
  • FF160/858/CW25 texture finishing
Download Catalog

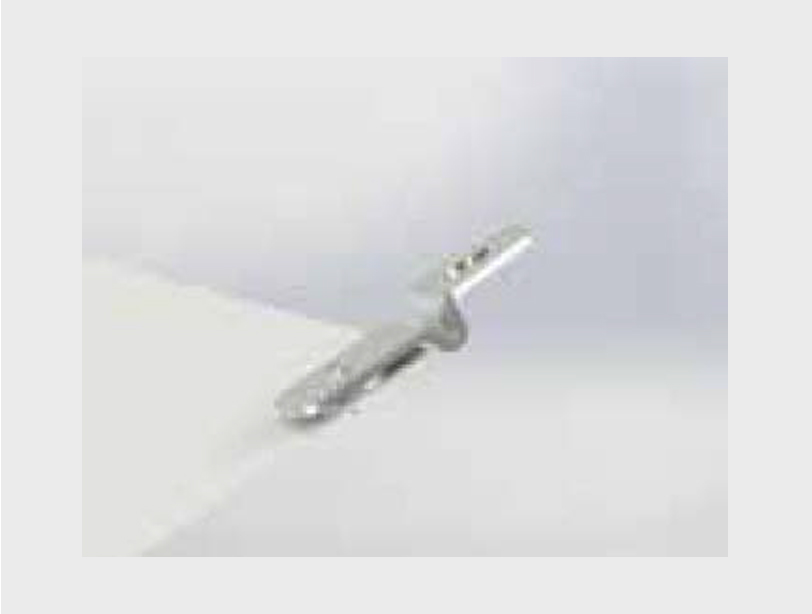

1) Concealed Removable Hinge

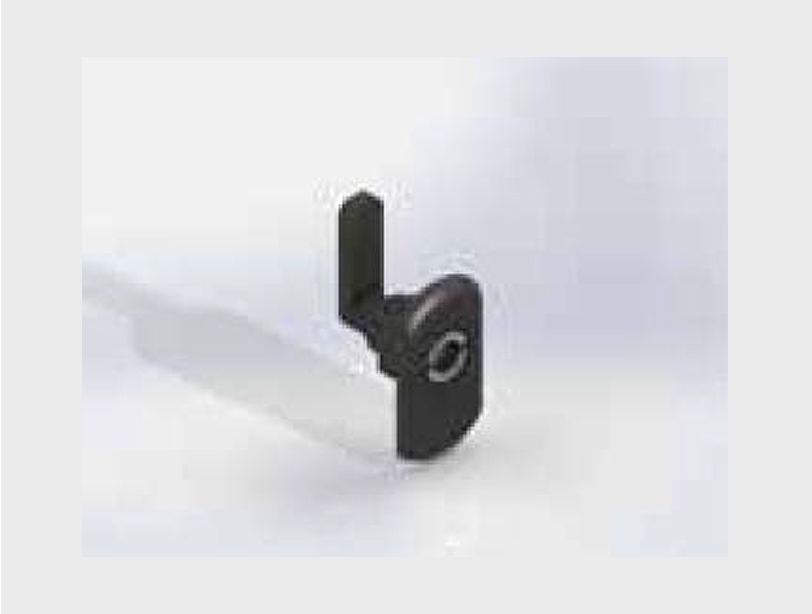

2) Lock c/w water protection features

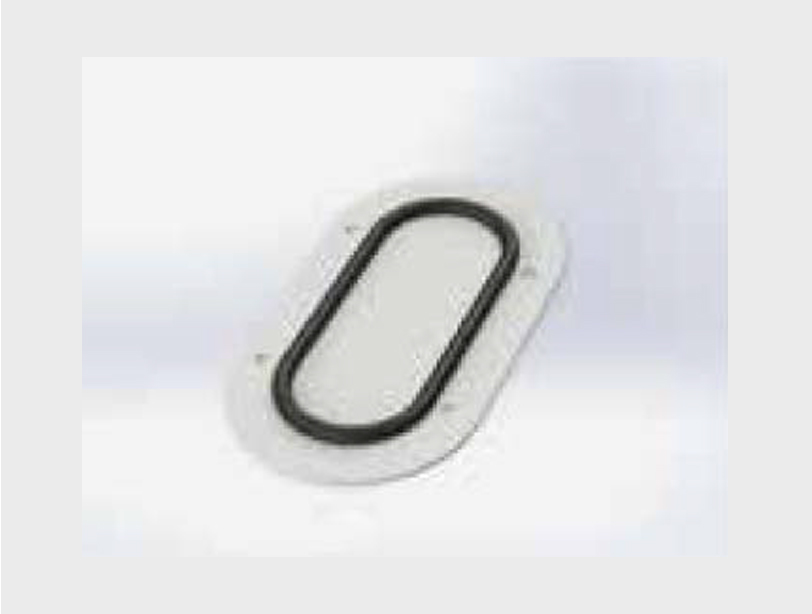

3) Polyurethane Gasket at Door Panel & Gland Plate


4) Built in pre-installed nut
